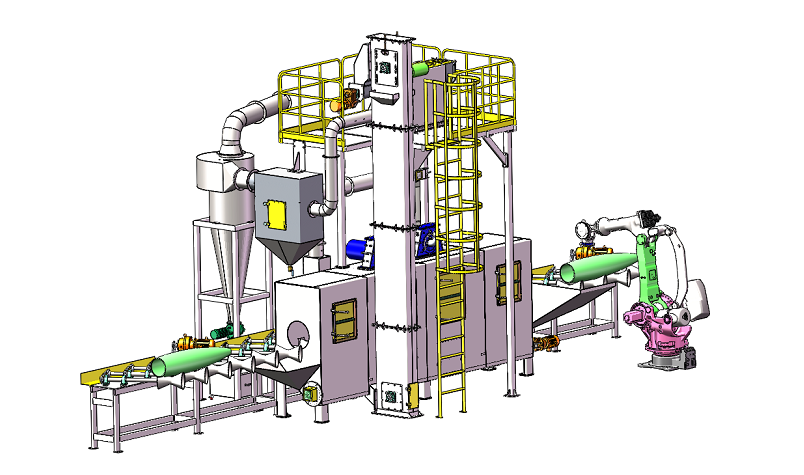

Shell mukati memadziro ekuchenesa muchina
Muchina wekupfurwa wemukati wemadziro eganda casings chigadziriso chine otomatiki chakagadzirirwa kubvisa zvisaririra, oxide layer, uye ngura kubva mukati meiyo casings. Basa rayo guru rinosanganisira kuchenesa uye kusimbaradza pamusoro pe-sipedhi inokonzeresa mabrasive media, senge steel shot kana ceramic shot.
Tsanangudzo Yakadzama yeZvikamu Zvikuru uye Mabasa eShell Inner uye Outer Wall Cleaning Machine.
1. Projectile Circulation System
Shot Storage uye Supply Device
Basa: Kuchengeta media inokuvadza (semuenzaniso, simbi isina simbi inopfura, simbi inopfurwa) uye inopa huwandu kune inoputika unit kuburikidza nevharuvhu inodzoreka kana sisitimu inofambisa, kuve nechokwadi chekusimba kwejekiseni.
Shot Recovery Device
Basa: Inounganidza zvakashandiswa abrasive media kuburikidza nescrew conveyor, bucket elevator, kana pneumatic recovery systems yozvidzosera kunzvimbo yekuchengetera, ichiita yakavharwa{0}}loop circulation system kuderedza kurasikirwa nezvinhu.
Shot Sorting uye Kucheneswa mudziyo
Basa: Inoshandisa zvikirini zvinozungunusa uye zvigadziriso zvemhepo kuparadzanisa mapellets akaputsika, guruva, uye tsvina, kuve nechokwadi kutendeseka kweabrasive media uye kuchengetedza kuchenesa.
2. Shot Blasting System
Inner Wall Shot Blasting Device
Outer Wall Shot Blasting Device
Basa: Inomhanyisa abrasive midhiya kune yakakwira velocities (60-100 m/s) uchishandisa centrifugal mavhiri kana compressed mweya nozzles uye anoatungamira kune ese emukati nekunze nzvimbo yeganda casing, kuve nechokwadi chekuvhara yakazara pamusoro.
Multi-Angle Nozzle Adjustment Mechanism
Basa: Inogadzirisa kona yekupfapfaidza kuburikidza nemaoko emuchina kana kutenderera nozzles kuti ive nechokwadi chekucheneswa kwezvakaoma zvemukati madziro zvimiro, senge shinda uye grooves, kubvisa mapofu.
3. Shell Positioning uye Conveying System
Automatic Clamping uye Rotation Mechanism
Basa: Inochengetedza ganda reganda uchishandisa hydraulic kana pneumatic fixtures uye inoitenderedza ichitenderedza axis yayo kuburikidza nemota, ichiva nechokwadi chekuti yunifomu yemadziro emukati kune pfuti inoputika maitiro.
Conveyor Line (Chain Type/Roller Conveyor)
Basa: Inotakura otomatiki magomba mukati nekubuda kunze kwechiteshi chekushanda, kubatanidza kurodha nekuburitsa maitiro uye kugonesa kubatanidzwa mumitsetse yekugadzira otomatiki.
4. Kubvisa Dust uye Environmental Protection System
Yepamusoro-Yekunhonga Dust (Bag/Cartridge Type)
Basa: Inobata guruva resimbi nemarara anogadzirwa panguva yekupfurwa kwepfuti, kuona kuti zvinoburitswa zvinosangana nezviyero zvekuchengetedza kwezvakatipoteredza (semuenzaniso, PM10 Zvishoma pane kana kuenzana ne20 mg/m³).
Noise Isolation Cover
Basa: Inoderedza mazinga eruzha rwekushanda (kazhinji pasi pe85 dB), nekudaro ichivandudza nharaunda yese yekushanda.
5. Kudzora System
PLC/HMI Control Center
Basa: Inobvumira vashandisi kuseta maparamendi akadai sekupfura nguva yekuputika, kudzvanywa, uye abrasive kuyerera. Iyo zvakare inotarisisa mamiriro emidziyo (semuenzaniso, nhanho yekupfura, tembiricha yemota) uye inotsigira kuongororwa kwekutadza uye maaramu.
Automated Sensing System
Basa: Inoona nzvimbo uye yekuchenesa mamiriro egokobhoti casing uchishandisa photoelectric kana kumanikidza sensors, inogonesa inogadzirisa inogadzirisa panguva yekushanda.
6. MaSystem Ekubatsira
Lubrication uye Kutonhora Chishandiso
Basa: Inopa lubrication uye kutonhora kwezvinhu zvakakosha senge mabheya ari mupfuti inoputika unit, nekudaro ichiwedzera hupenyu hwesevhisi yemidziyo.
Safety Interlock Device
Basa: Inosanganisira yekupinda yekudzora switch uye mabhatani ekumisa emergency kuti uone kuvharika kwemidziyo panguva yekugadzirisa uye kudzivirira kushanda netsaona.
Typical Workflow
Iyo shell casing inopihwa otomatiki musystem → yakamira uye yakasungirirwa → inotenderedzwa mukamuri inoputika.
High{{0}pressure abrasive media inopfapfaidzwa kumadziro emukati ukuwo circulation system panguva imwe cheteyo ichipora, kuronga, nekuzadza media.
Kana wapedza basa rekuchenesa, iyo abrasive media inomira kuburitswa, iyo casing inodzoserwa, uye goko rakacheneswa rinobva raburitswa.
Mukufamba kwese, hurongwa hwekubvisa guruva hunoramba huchishanda kuchengetedza nzvimbo yekushanda yakachena.
Unyanzvi Zvimiro zveShot Blasting Yekuchenesa Machine yeShell Inner Walls
Mauto-Kururamisa KwemaGiredhi: Kukwanisa kuchenesa madziro emukati akadzika nekudzika-kusvika{2}}kusvika ku{2}}reshiyo yedhayamita inodarika 10, zvichiita kushata kweRa Less than kana kuenzana ne1.6 μm.
Material Adaptability: Inoenderana nezvinhu zvakasiyana, zvinosanganisira simbi uye aluminium alloy casings.
Kusimbisa Mhedzisiro: Iyo pfuti yekupenengura maitiro inosimudzira kuneta kwemadziro emukati nekukwevera kudzvinyirira kwasara kushushikana kunodarika -200 MPa.
Midziyo yakadaro inoshandiswa zvakanyanya mune zvemauto uye zvemuchadenga zvikumbiro uye zvinofanirwa kuenderana neakakodzera zviyero zvemauto, senge GJB 150A-2009.
